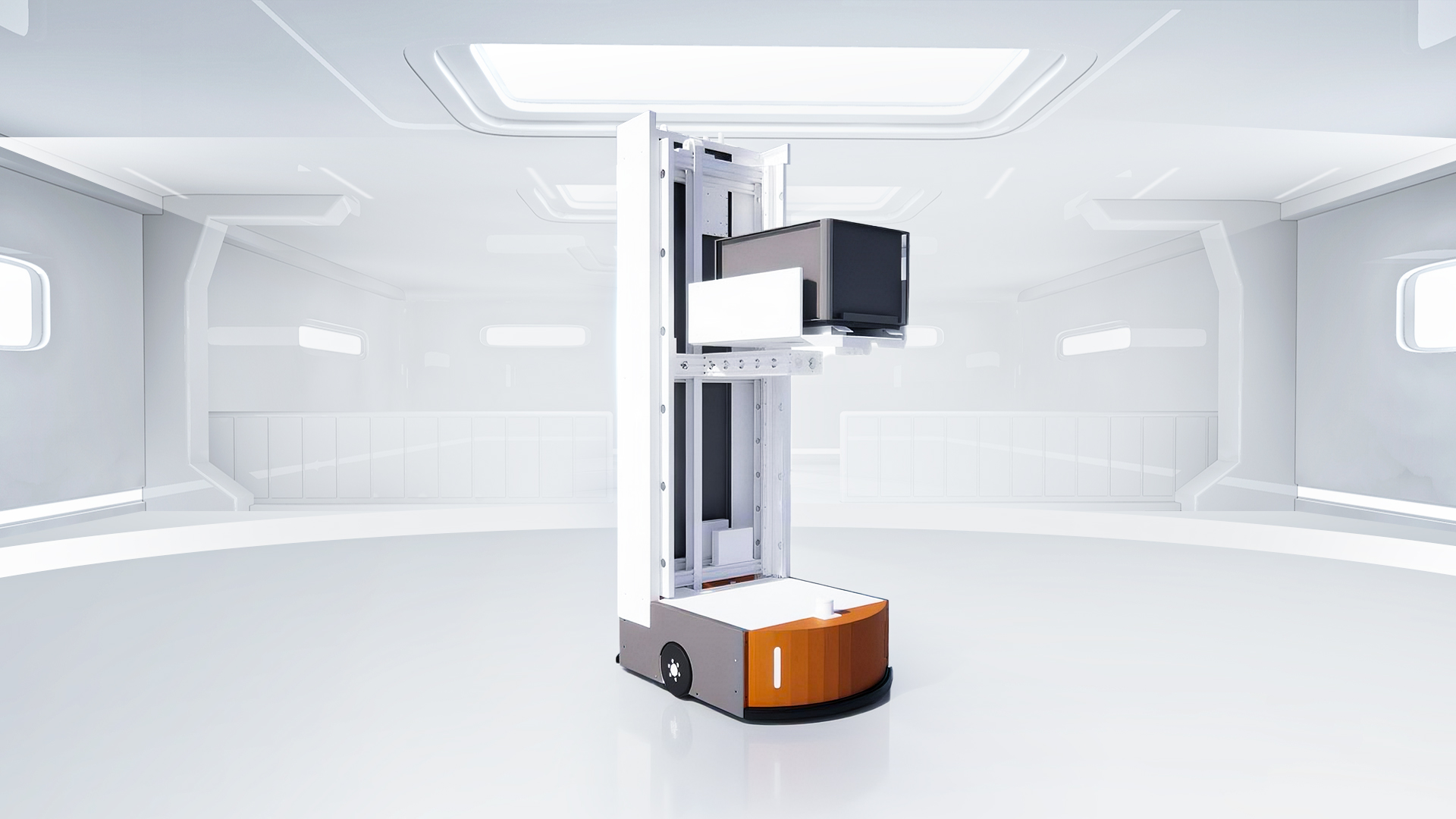

Intelligent Secondary Storage AGV Robot

FOWA Robotrans

Product Advantages

  • The robot utilizes laser navigation technology and QR code recognition solutions for precise positioning and navigation.
  • Through its underlying control algorithm, the robot can accurately follow planned paths issued by the dispatch system.
  • The robot employs a dual-wheel differential drive, enabling changes in direction, forward and backward movement, and rotation at any angle.
  • The robot achieves autonomous loading and unloading through fork lifting, rotating, extending/retracting, and clamping/suction functions.

Technical Parameters

Storage Unit Dimensions (Customizable): 1885mm (L) × 400mm (W) × 2800mm (H) (per unit)

Container Dimensions: 400 × 300 × 230mm

Technology Type: Secondary Lifting Container AGV

Travel Speed: 1.5 m/s (under both full load and no-load conditions)

Travel Stop Accuracy: ±10mm

Load Handling Method: Rotating clamping fork + vision correction

Container Rated Load: 15-20kg

Load Handling Height Range: 370–2550mm

Software System: Windows 10 operating system, dual-core processor, IT-grade hard drive

Digital Systems: Dispatch system, fault alert system, digital management system

Power Supply & Consumption: 220V/50Hz, 200W power consumption, operating temperature/humidity: 0-40°C, 20%-80% RH, noise: ≤60dB

Safety Performance: Obstacle detection, collision avoidance, audible/visual alarms, emergency stop button, warning indicators

Target Client Types: Primary storage facilities, secondary storage facilities, smart warehouses

Product Overview: Precise positioning, automated management, seamless hardware-software integration with full-scenario solutions
